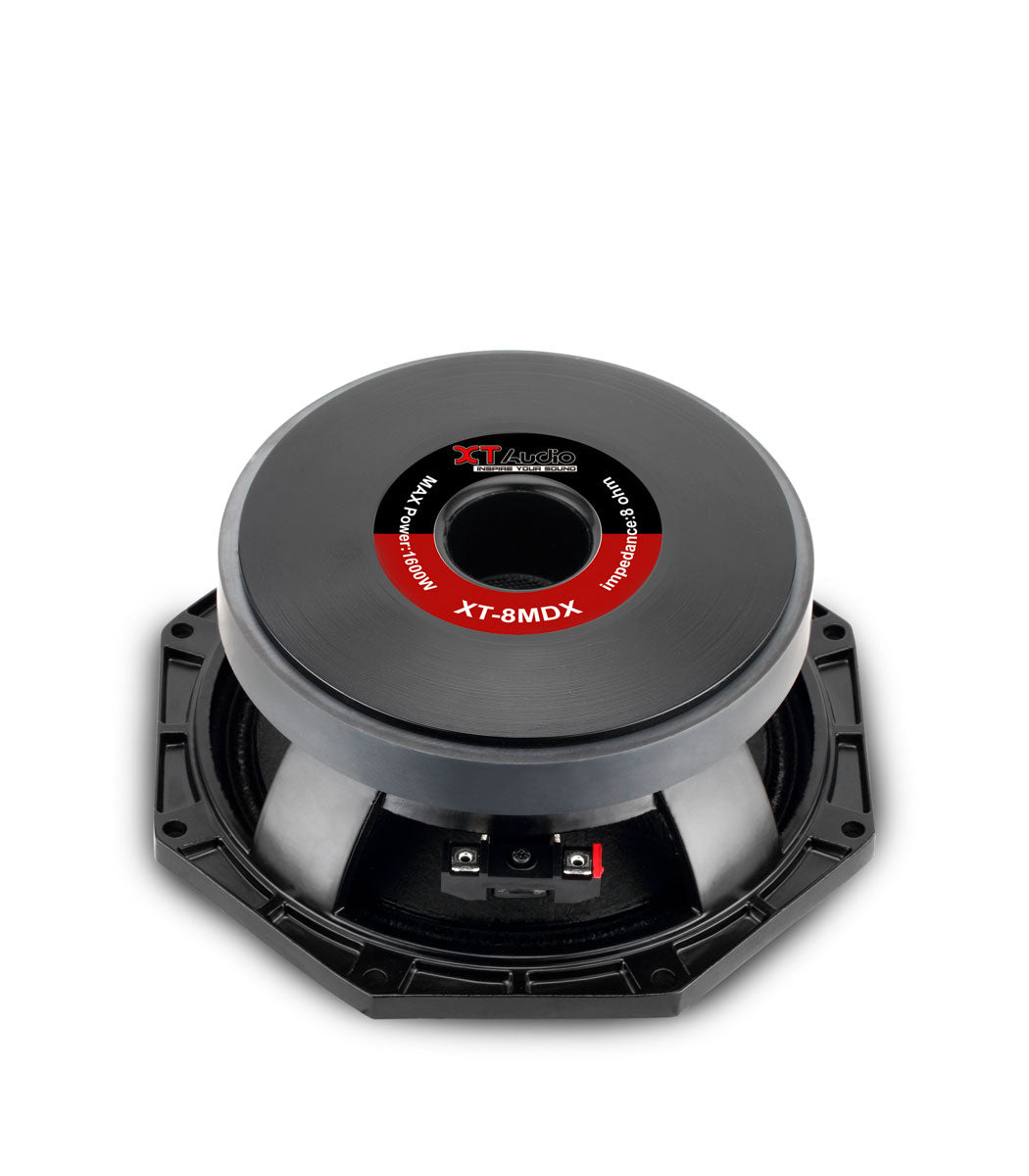

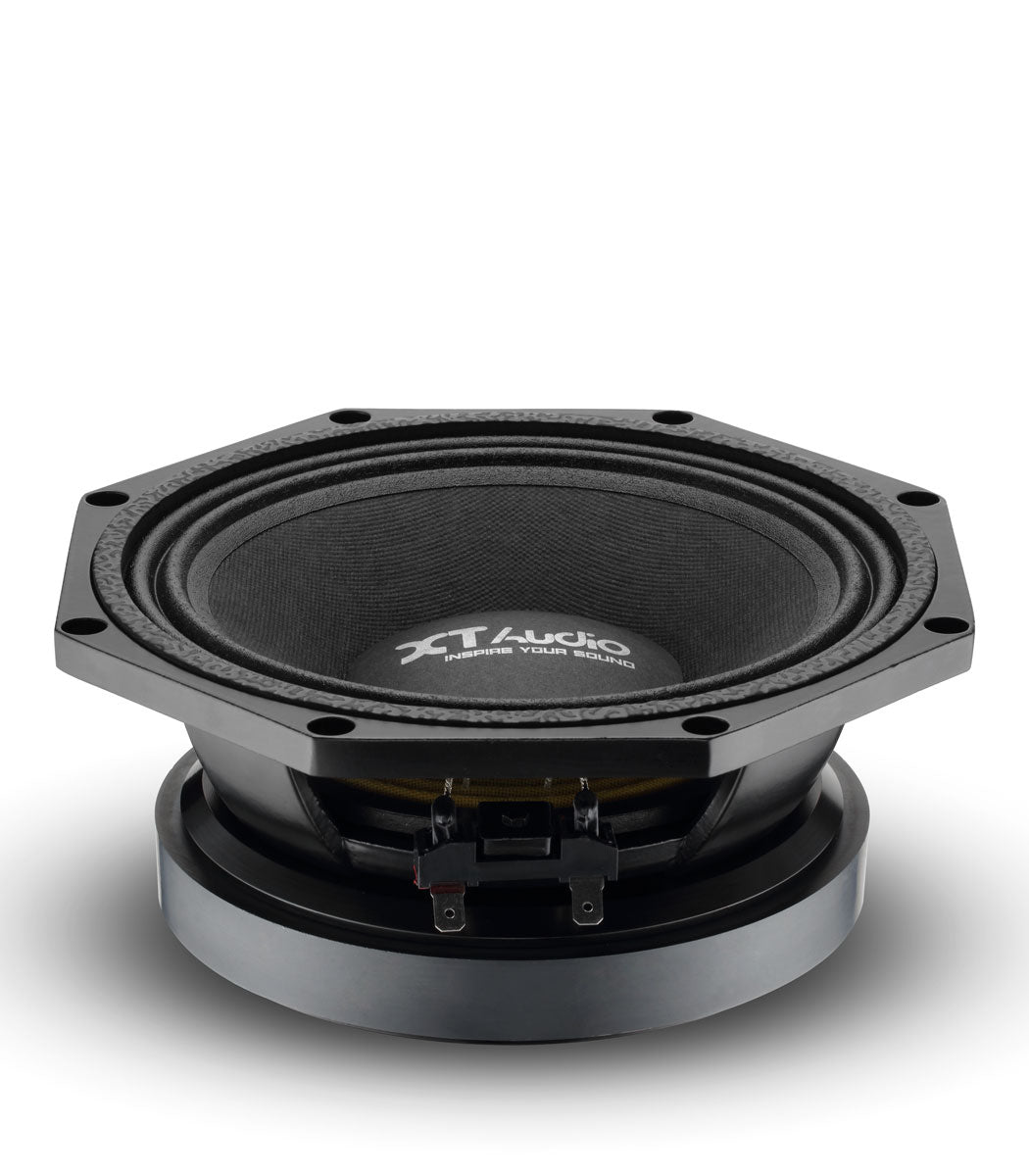

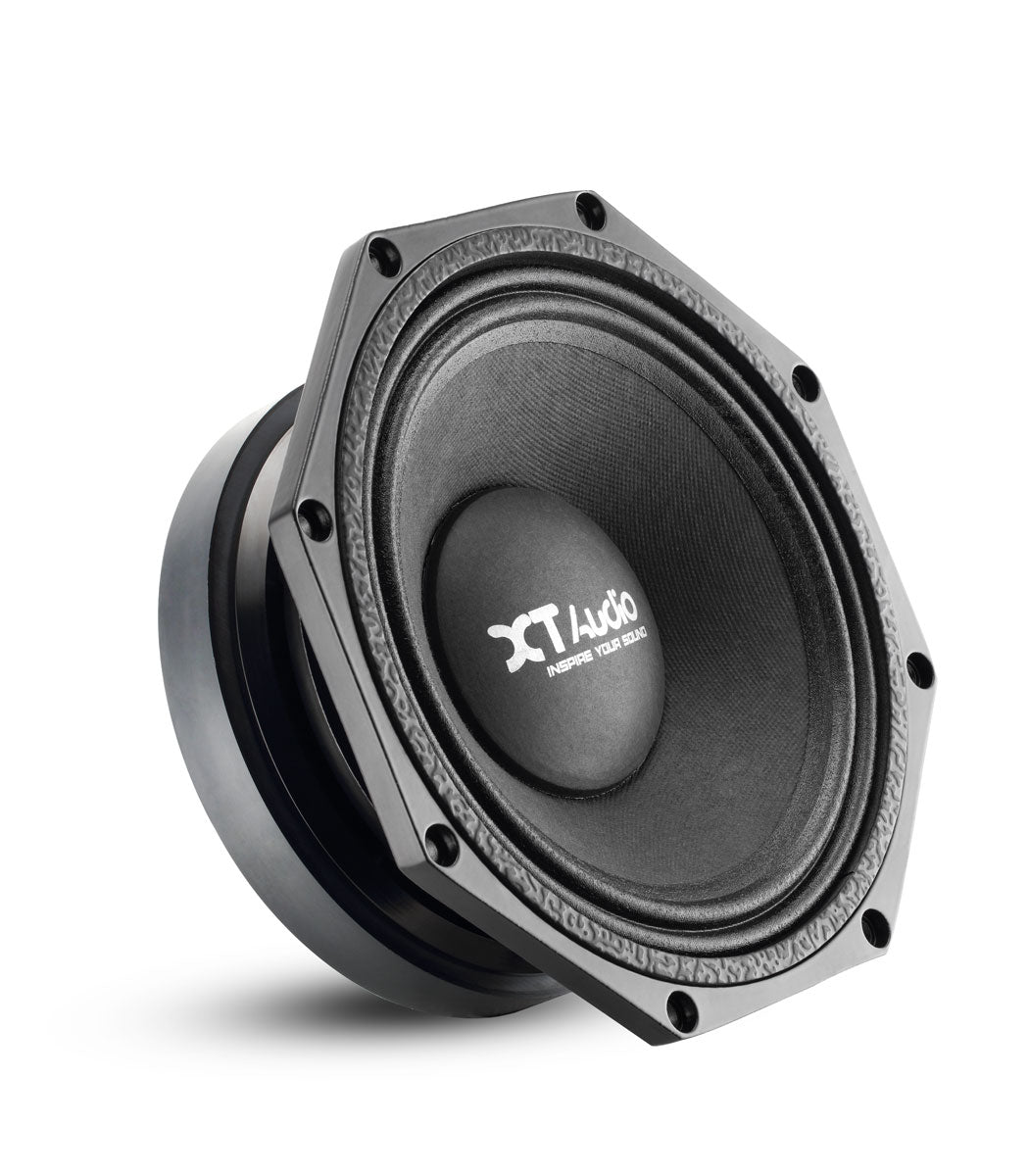

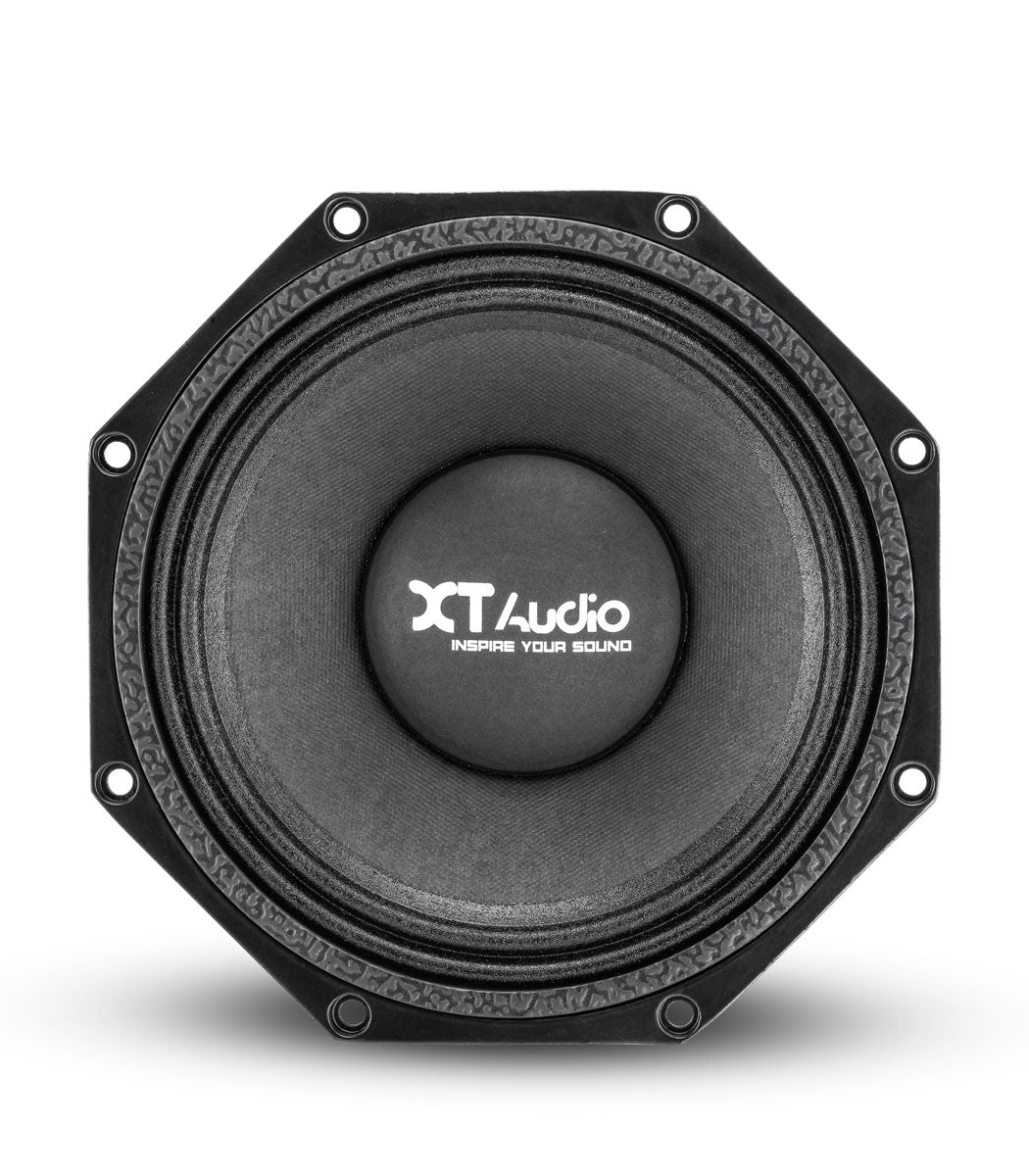

XT Audio Speakers 8'' Ferrite XT-8MDX |8”in 1600W
/
XT-8MDX | 8”in | 1600W MAX
SPECIFICATIONS
| Nominal diameter |
8.75” in/ 244mm |
| Nominal impedance | 8Ω |
| Minimum impedance | 5Ω |
|
Max power |
1600W |
|
RMS power |
800W |
|
Sensivity (1W/1m) |
100 dB |
|
Frequency Range |
49-5000Hz |
|
Voice coil diameter |
3” in / 79.5 mm |
|
Winding material |
CCAW |
|
Former material |
Glass Fiber |
|
Winding depth |
0.41” / 10.3mm |
|
Magneticc gap depht |
0.31” / 8mm |
|
Magnet material |
Ferrite |
|
Flux density |
1.2T |
MOUNTING/SHIPPING INFORMATION
|
Overall diameter |
8.75”/224 |
In/mm |
|
Bolt circle diameter |
8.27”/210 |
In/mm |
|
Baffle cutout diameter |
7.40”/188 |
In/mm |
|
Mounting Depth |
3.19”/ 81 |
In/mm |
|
Net Weight |
18 |
Kg |
|
Shipping Weight |
21.2 |
Kg |
|
Shipping Box |
49.5×25.5×25 |
cm |
THIELE SMALL PARAMETERS
|
Fs |
100Hz |
|
Re |
|
|
Qes |
0.64 |
|
Qms |
4.78 |
|
Qts |
0.56 |
|
Vas |
5.8 Vdm3 (0.20ft) |
|
Sd |
216.4cm2 (33.5in) |
|
Ƞo |
1.09% |
|
Xmax |
± 9.2mm |
|
Xvar |
± 1.2mm |
|
Mms |
22.5g |
|
BI |
11.83 Txm |
|
Le |
0.4 mH |
|
EBP |
157 Hz |
