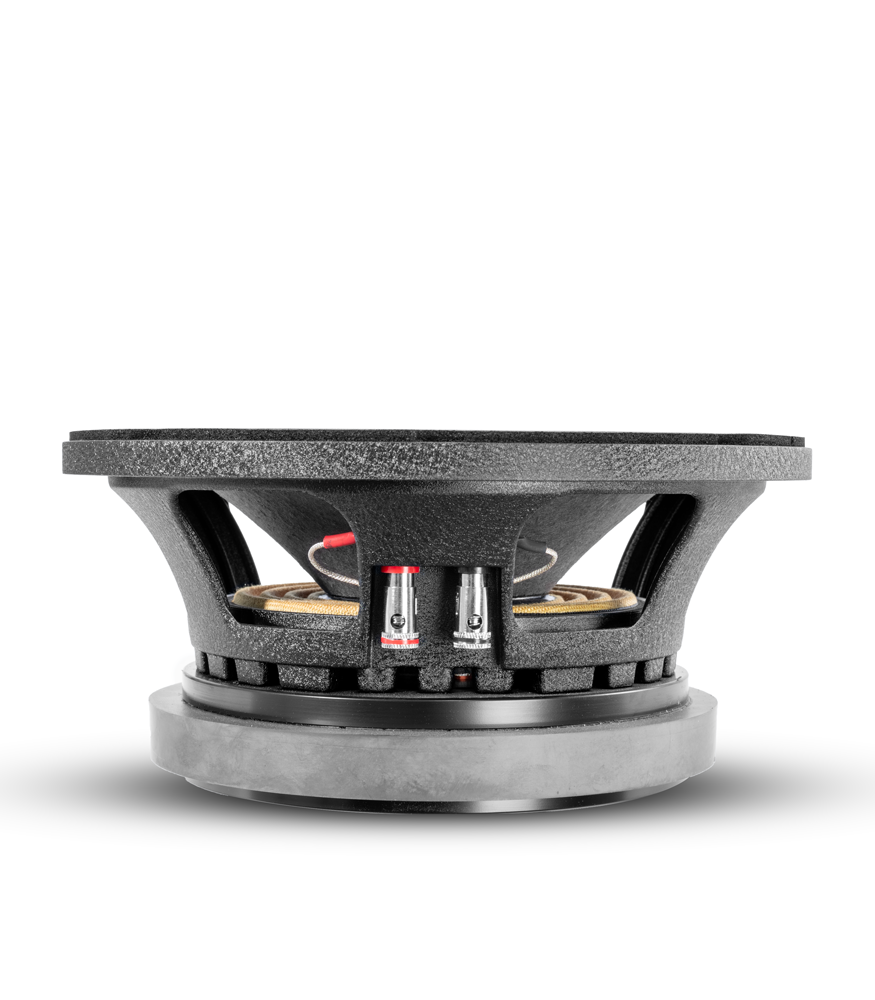

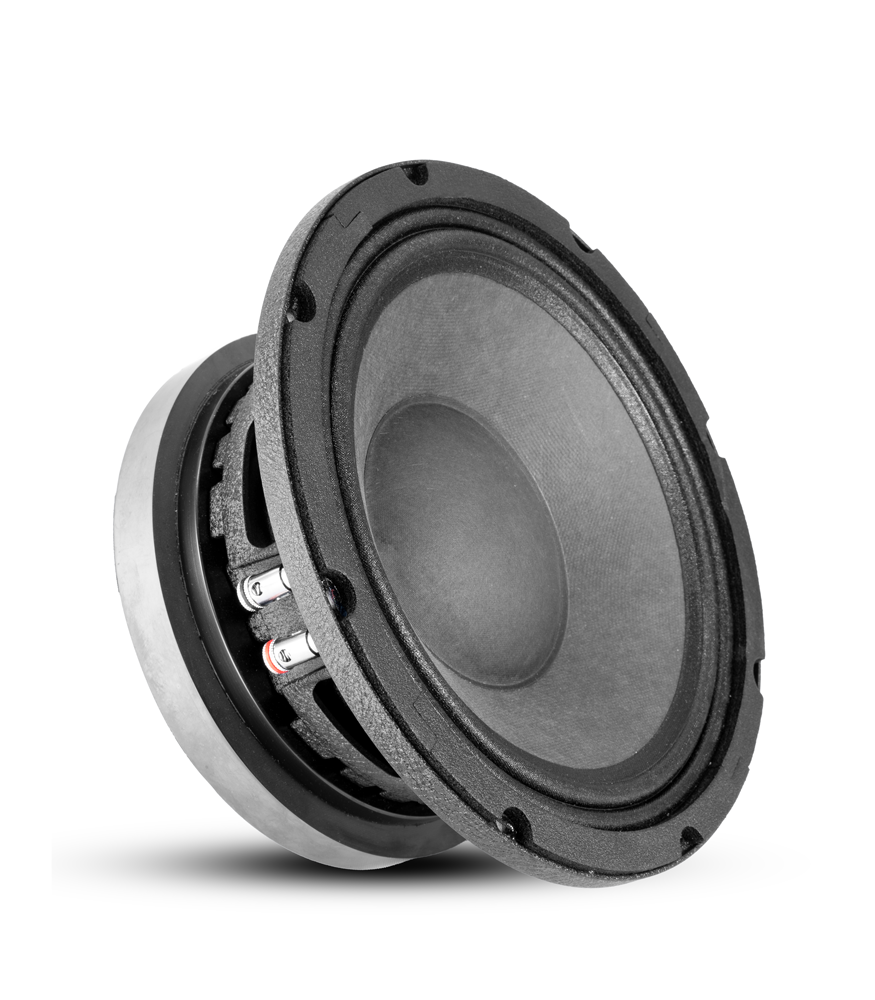

XT Audio Speakers 10'' Ferrite Speakers XT-10MD10 10in 1300W

10” in/ 254 mm

Max power

1300W

RMS Power

650W

Magnet material

Ferrite

Sensitivity (1w/1m)

103 dB

Frequency Response

150Hz-5000Hz

Recommended HI Pass Crossover

80Hz

Motor

Voice Coil Diameter

3″/76.5mm

Voice Coil Former Material

glass fiber

Winding Material

SV

Cone Material

Paper

Surround Material

Cloth

Basket Material

Steel

Magnet Material

Aluminium

Magnet Weight

91 Oz

Thiele & Small Parameters

Equivilant Volume

Vas

23.517L

Excursion (one way)

Xmax

12.5

Free Air Resonance

Fs

67HZ

Mechanical Factor

Qms

6.18

Electrical Factor

Qes

0.26

Total Factor

Qts

0.25

Mechanical Mass

Mms

40.71g

Mechanical Compliance

Cms

138.052u MN

BL Factor

BL

19.25

Cone Area

Sd

346.361cm2

CD Resistance

Re

5 ohm

Measurament

Overall Diameter

261mm/ 10.26”

Overall Depth

127mm/ 4.99”

Front Mount Baffle Cutout

230mm/ 9.04”

Mouting Depth

112mm/4.4”

Motor Diameter

200mm/ 7.86″
