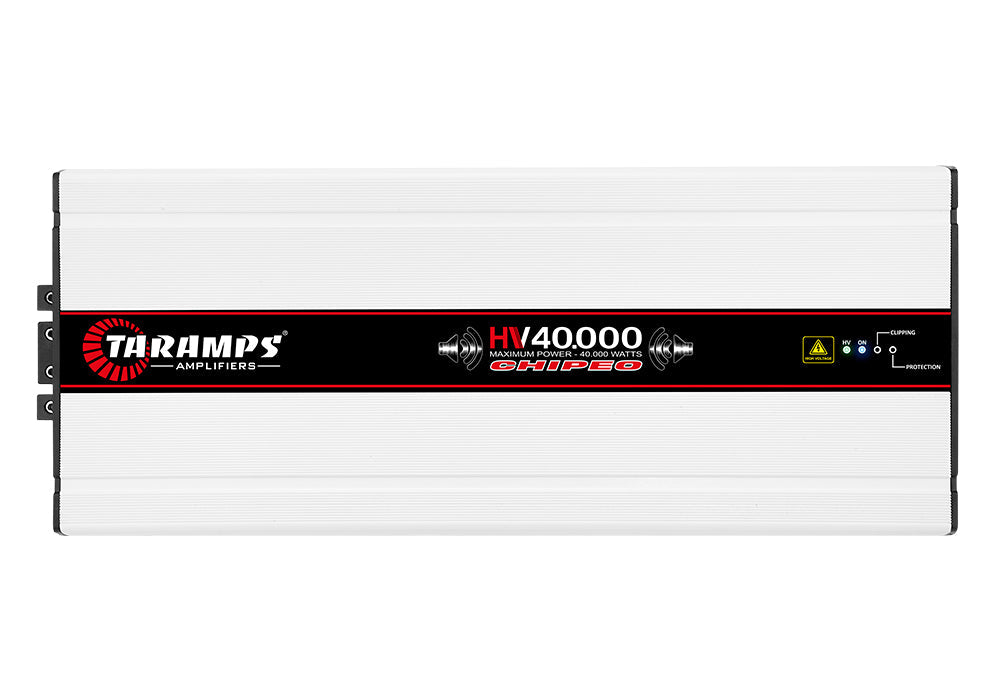

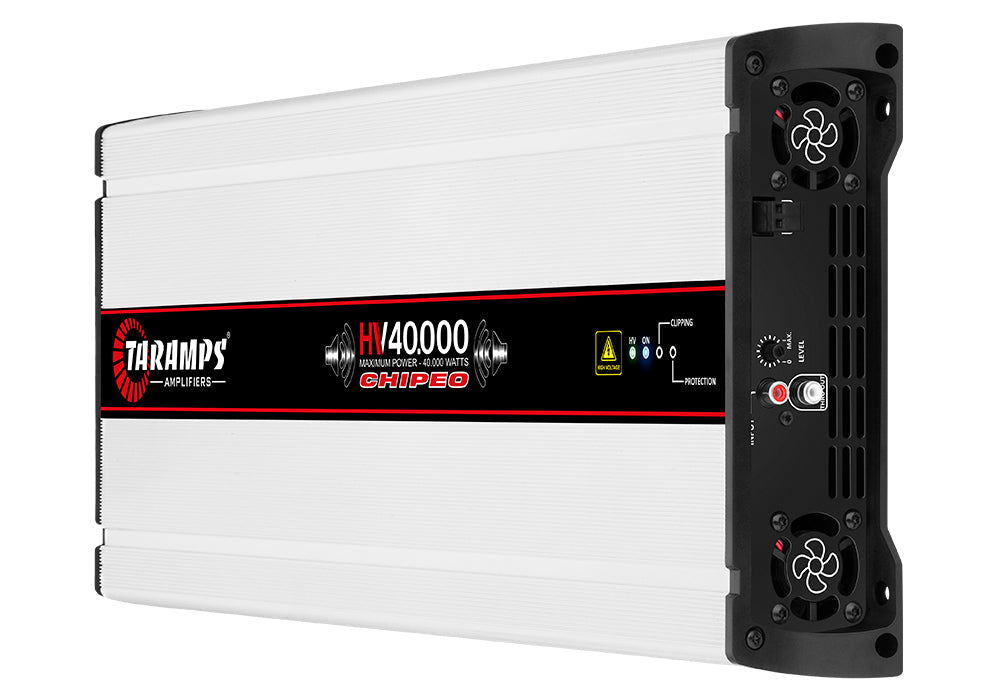

Taramps HV 40.000 Chipeo Amplifier
/
Taramps Output Stage Class D (1 Channel 40.000 Watts RMS)
HV 40.000 CHIPEO
Strength, performance and high performance define this Taramps output stage. It offers a maximum power of 40,000 Watts RMS at 0.5 Ohm, with thermal and short-circuit protection. Powered by batteries in series, it uses this energy source to guarantee a unique performance in its category. Ideal for medium and large automotive sound systems, it excels in the sub-bass and mid-range, with high-performance timbres and sound quality.
Get to know the HV 40.000 CHIPEO!
| 0.5 Ohm VERSION | Maximum output power @ 227VDC 0.5 Ohm: 40.000W RMS |
|---|---|
| Number of Channels | 01 |
| Output Voltage | 227VDC @ 0.5 Ohm - 18 Batteries |
| Input Sensitivity | 330mV (Level 100%) @ 0.5 Ohm |
| Aux Input standard | 0.3% |
| Signal to Noise Ratio | >95dB |
| Frequency response | 10Hz ~ 15KHz (0.5dB) |
| Efficiency | 92% @ 0.5 Ohm (Full Power) |
| Input impedance | 27K Ohms |
| Protection system | Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage Thermal protection |
| Power Supply Voltage | Minimum: 140VDC Maximum: 275VDC |
| Consumption at rest | 110mA |
| Maximum music consumption @ 0.5 Ohm | 91.5A |
| Maximum Sinusoidal Consumption @ 0.5 ohm (100Hz) | 183A |
| Dimensions (H x W x D) | 8.98" x 2.52" x 22.07" (228 x 64 x 561 mm) |
| Weight | 12.54lb (5.70Kg) |
| EAN | 7898556844727 |
